Modular Mono knee joint

Modular Mono knee joint

Description

Modular Mono knee joint is a simple knee for geriatricians in particular. It is a perfect knee for users who are going to start learning to stand and walk. The knee has a loud clicking sound that helps the user to hear when standing safely.

Features

  • Manual locking
  • Loud clicking sound
  • Low weight
  • Transfemoral amputation

Material: Aluminum
Amputation level: Transfemoral
Max. patient weight: 100 kg
Building Height: 25 mm (3W045) 20 mm (3W045-G)
Connection: Integrated pyramid (3W045) and M36 thread (3W045-G)
Weight: 380 g
Flexion: Max. 155 degree

Dimensions & Article number

Art.no ConnectionWeightMax. Weight

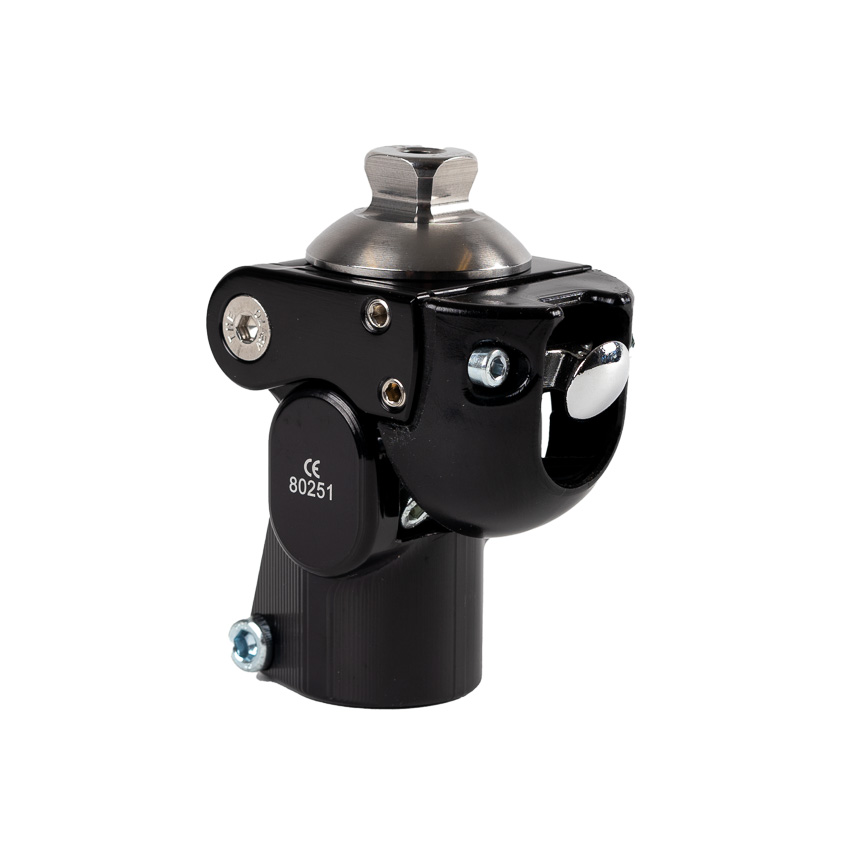

3W045 Integrated pyramid 380 g 100 kg

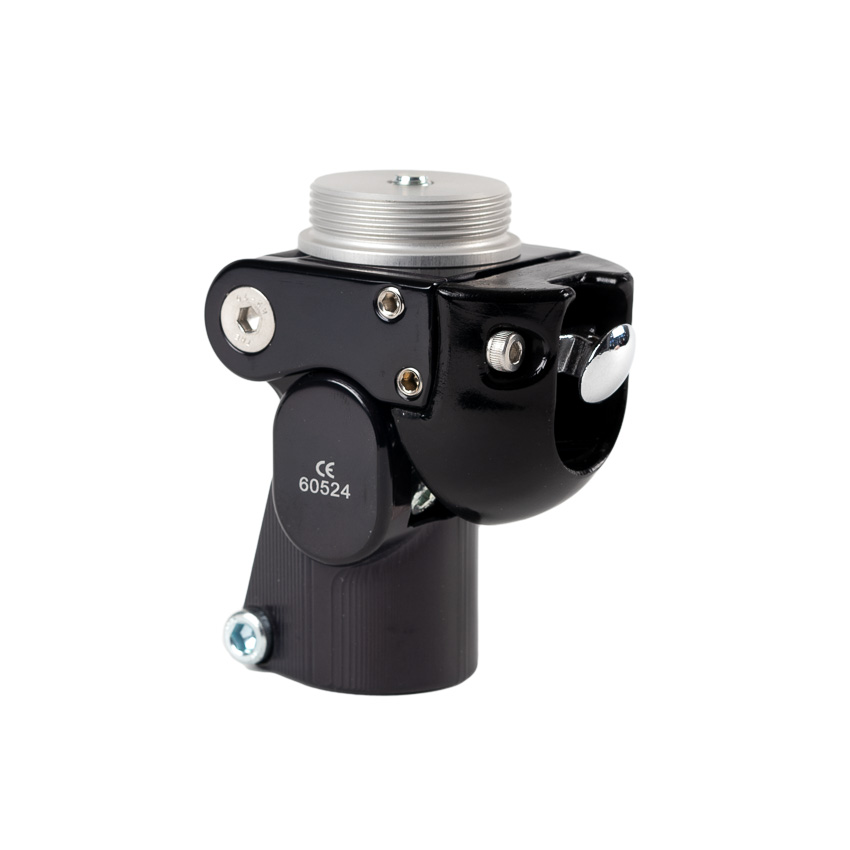

3W045-G M36 Thread 380 g 100 kg
