Overlay TF™

Overlay TF™

Description

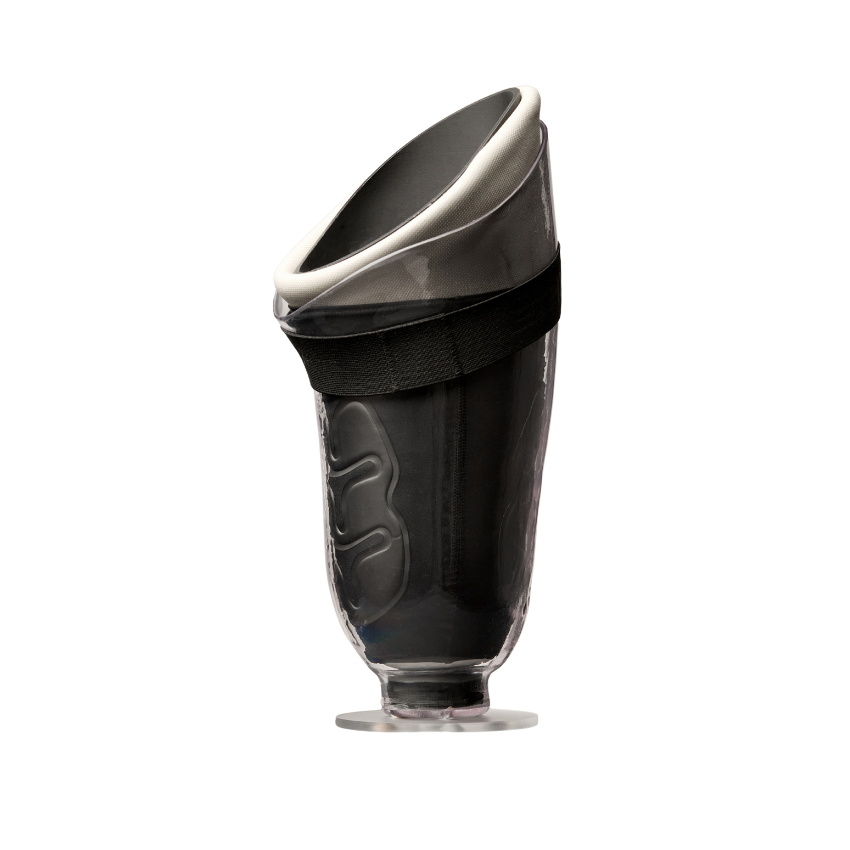

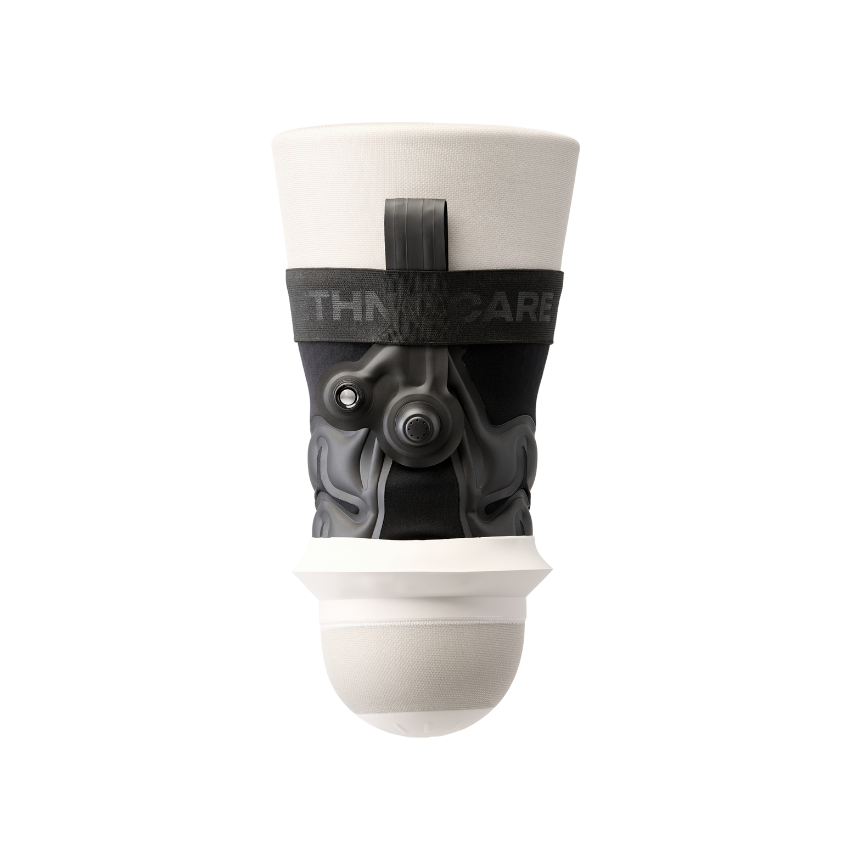

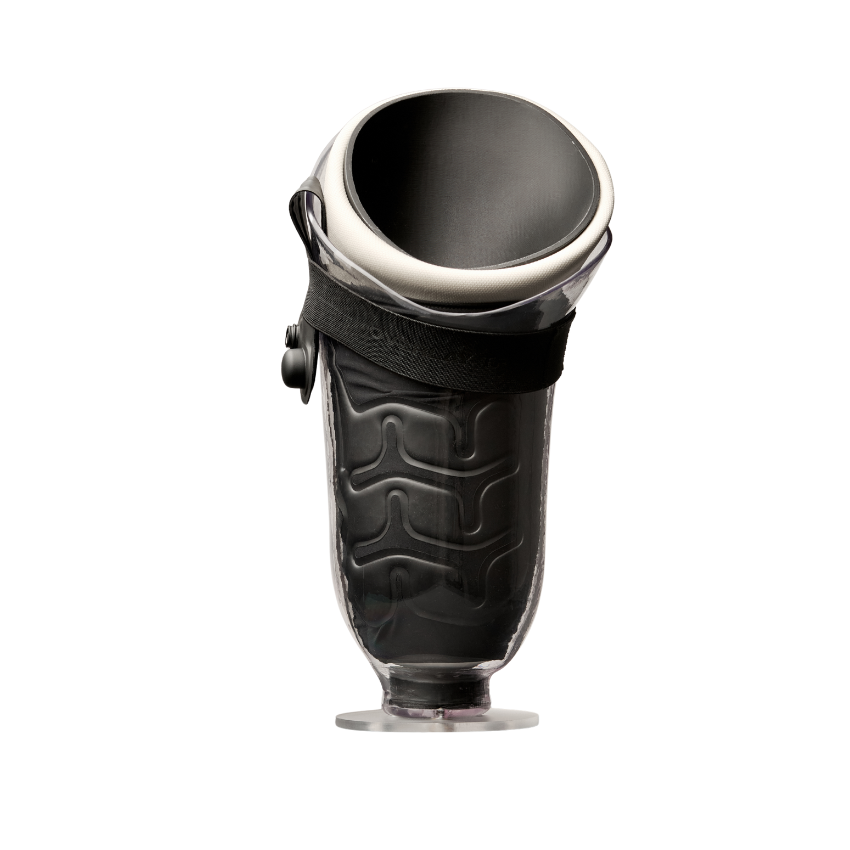

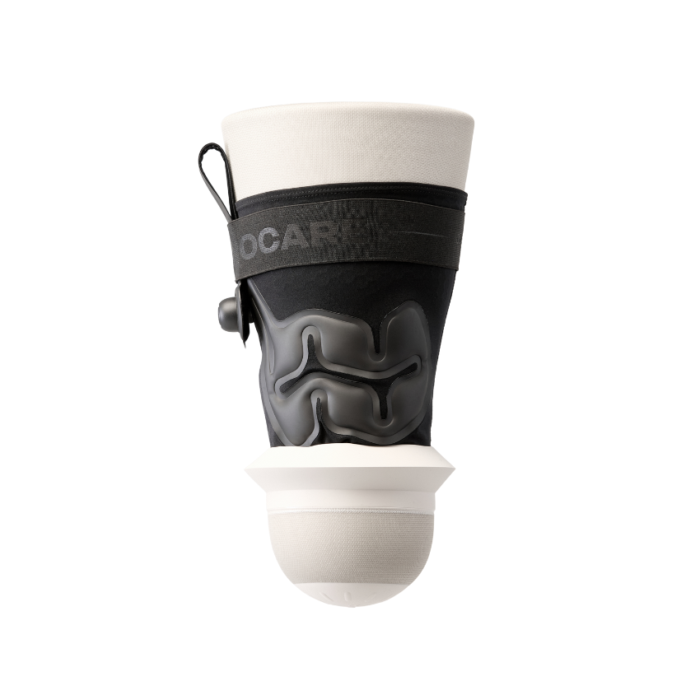

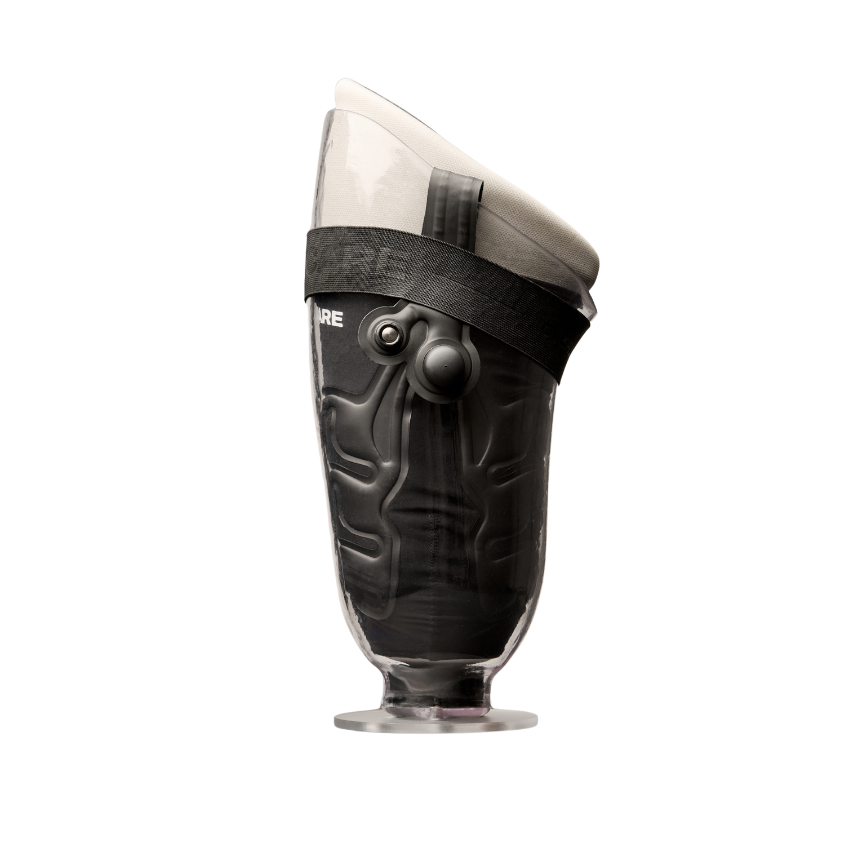

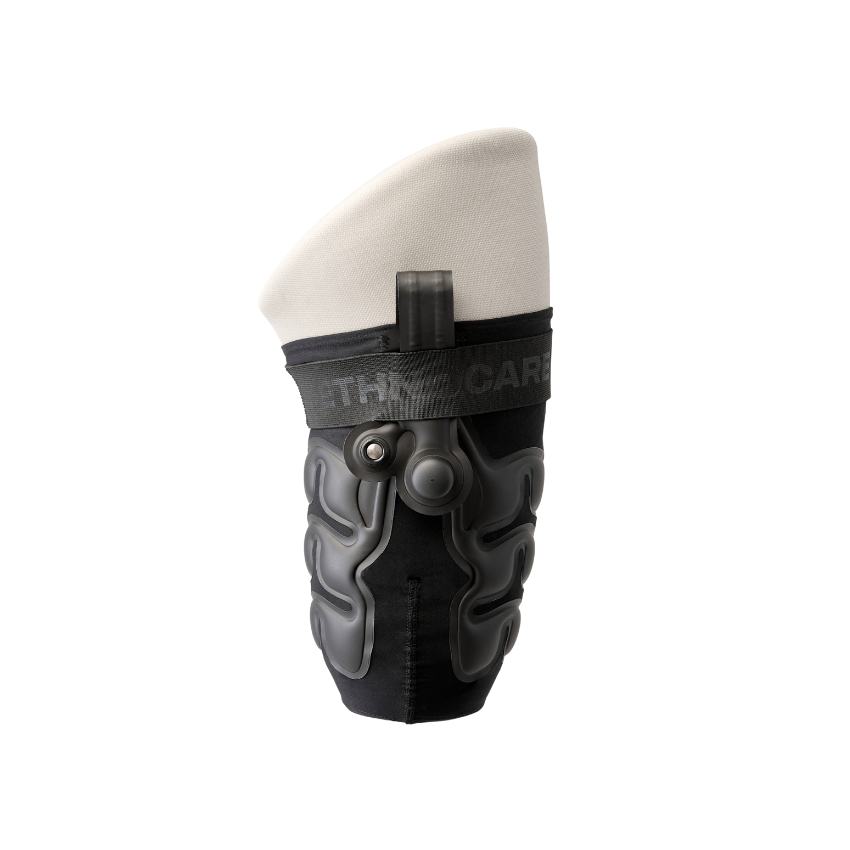

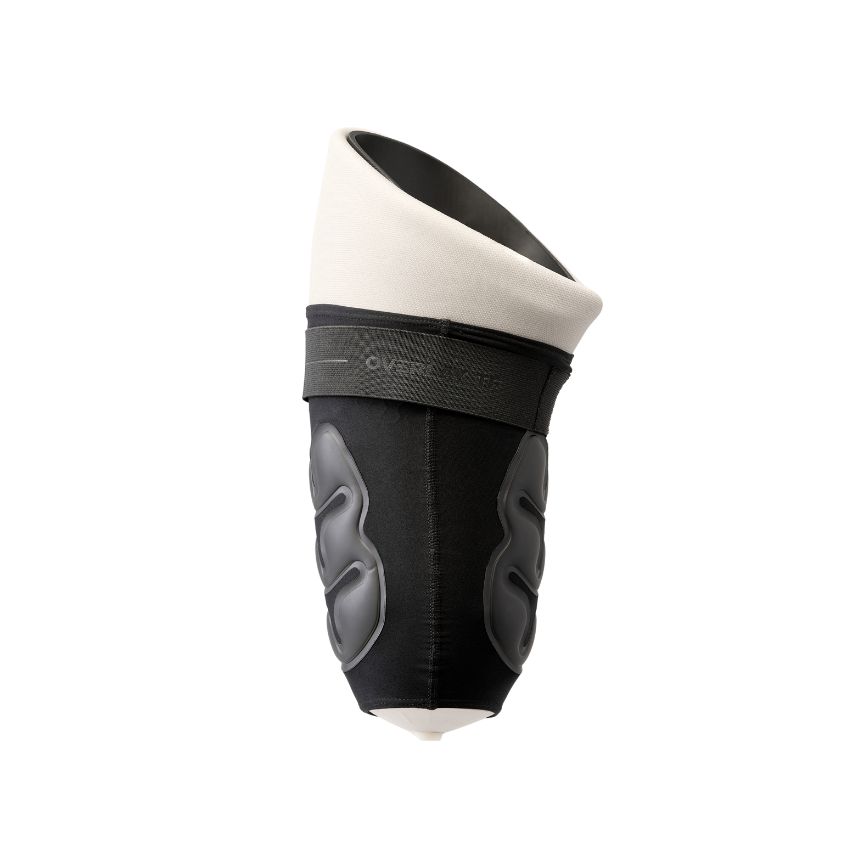

Overlay Transfemoral™ represents the next generation of volume-adjustable technology for transfemoral amputations. The product features an integrated air cell system that, in combination with an external pump, allows the user to easily and effectively adjust the fit directly within the socket without removing the prosthesis.

What sets Overlay Transfemoral™ apart is its specially developed design for transfemoral users, where the air cells are strategically positioned to accommodate volume fluctuations. The patient can fine-tune the volume based on daily condition, activity level, and swelling, reducing the need for prosthetic socks and enhancing comfort throughout the day.

Overlay Transfemoral™ also helps reduce the need for fabricating new sockets, which is particularly beneficial during the initial months following an amputation when significant volume changes are common. The product is thin, breathable, and easy to integrate into existing prosthetic solutions without the need for modifications.

Features

  • Volume adjusting control
  • Dynamic air cells
  • Optimal fit for patient
  • Reduces the need to produce new prosthetic sockets

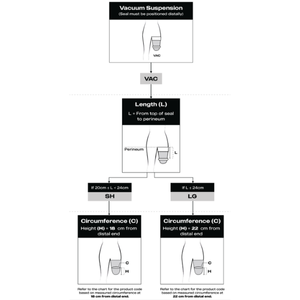

Dimensions & Article number

Art.noCircumference (C)Length (L)Suspension
OVTF-32-SH-PIN 32-36 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-38-SH-PIN 36-40 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-40-SH-PIN 40-44.5 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-44-SH-PIN 44.5-48 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-48-SH-PIN 48-52 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-52-SH-PIN 52-62 cm 19-24 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-32-LG-PIN 32-36 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-38-LG-PIN 36-40 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-40-LG-PIN 40-44.5 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-44-LG-PIN 44.5-48 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-48-LG-PIN 48-52 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-52-LG-PIN 52-62 cm 24-32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-32-XL-PIN 32-36 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-38-XL-PIN 36-40 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-40-XL-PIN 40-44.5 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-44-XL-PIN 44.5-48 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-48-XL-PIN 48-52 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-52-XL-PIN 52-62 cm > 32 cm PIN (Distal Locking + Lanyard + Cushion)
OVTF-32-SH-VAC 32-36 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-32-LG-VAC 32-36 cm > 24 cm VAC (Distally Positioned Seal Only)
OVTF-38-SH-VAC 36-40 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-38-LG-VAC 36-40 cm > 24 cm VAC (Distally Positioned Seal Only)
OVTF-40-SH-VAC 40-44.5 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-40-LG-VAC 40-44.5 cm > 24 cm VAC (Distally Positioned Seal Only)
OVTF-44-SH-VAC 44.5-48 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-44-LG-VAC 44.5-48 cm > 24 cm VAC (Distally Positioned Seal Only)
OVTF-48-SH-VAC 48-52 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-48-LG-VAC 48-52 cm > 24 cm VAC (Distally Positioned Seal Only)
OVTF-52-SH-VAC 52-62 cm 20–24 cm VAC (Distally Positioned Seal Only)
OVTF-52-LG-VAC 52-62 cm > 24 cm VAC (Distally Positioned Seal Only)

Document

File name Link
Brochure - Overlay TF Download
Size Guide - Overlay TF Download
Instructions for Use - Overlay TF Download
