Description

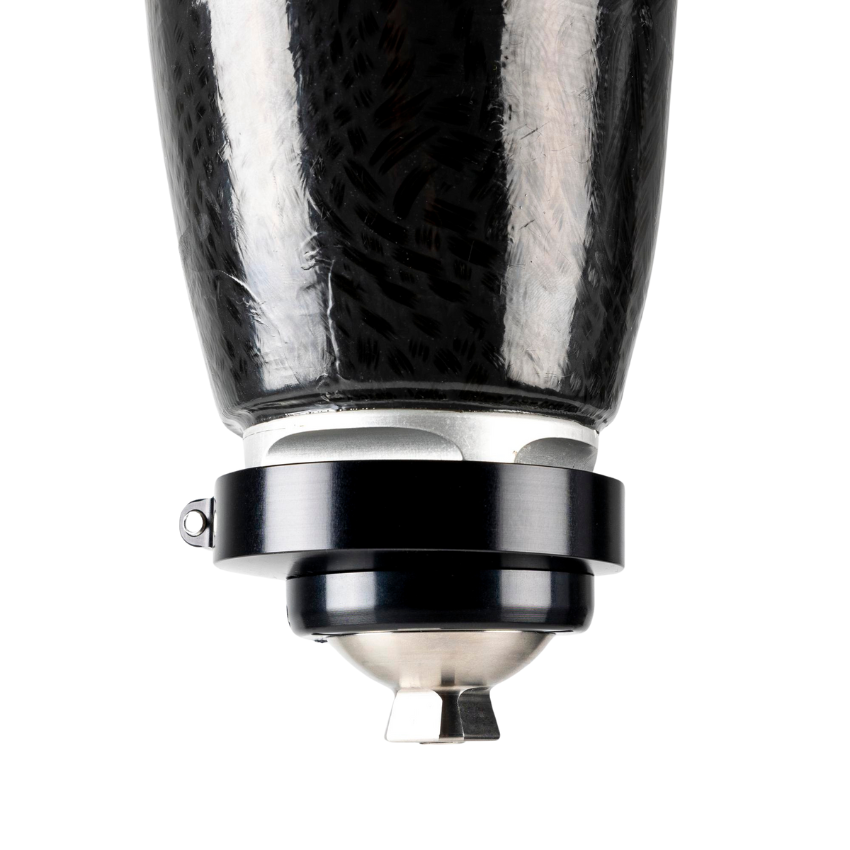

eAdjust is a adapter/alignment tool designed to easily allow angling, offsetting, and rotating the prosthetic socket for optimal setup without the need to remove the prosthesis. eAdjust offers unlimited rotation. It can be angled up to 11° and horizontally offset by a total of 23 mm.
eAdjust has been tested for prosthetic users with a maximum body weight of 125 kg. The adapter is engineered to be used in combination with a standard 4-hole adapter manufactured for casting or thermoplastic drawing of TT and TF prosthetic sockets. It also works very well in combination with DS (Direct Socket) sockets with a standard 4-hole adapter. The pyramid on the eAdjust is of a standard type and is compatible with other manufacturers’ pyramid receivers.
Functions
- Allows easy adjustment of the prosthesis, without having to remove the prosthesis
- Can be horizontally offset by a total of 23mm
- Angling up to 11°
- Unlimited rotation
- Max user weight 125 kg
- Water-resistant
Weight: 258g
Connection: Pyramid
Maximum body weight: 125 kg
System height: 45mm
Installation height: 33mm
Material: Titanium, Duraluminium
Range of rotation: 360°
Angling: 11°
Offset: 23mm
Lifespan: 5 years
